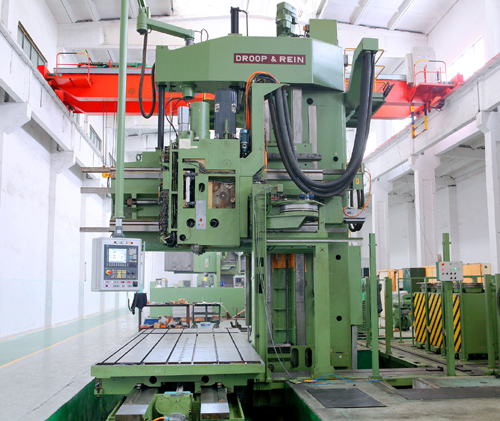

Make廠家：德國 DROOP & REIN
Quantity數量：2臺
Travels:
X (Table Longitudinal) 工作臺行程：3300 mm,
Y1 (Headstock Cross) 垂直行程：2330 mm,
Z (Outrigger Vertical) 刀架行程：1800 mm,
Y2 (Copying Tracer Support Cross) 仿行刀架行程：1830 mm,
W (Milling Spindle Quill) 園套筒伸出：350 mm;
Table工作臺尺寸：2000 × 5500 mm
TYPE 型號：LFAS 2000
S/N 105717;
24 Position ATC-50 Taper, 50刀柄,刀庫數量24把刀
Master Machine Copying Tracer Attachment Travels 仿行裝置行程：X3-200 mm, Y3-150 mm, Z3-400 mm;
GE Fanuc Series 150-M CNC Control 數控系統：GE FANUC 150M
Carriage Station,
Attachments銑頭：T56-Spindle Extension加長銑頭T56, T55 - Angular Milling Head角度銑頭T55, T54- Angular Milling Head角度銑頭T54, T53 - Angular Milling Head角度銑頭T53, T52-High Speed Milling Head高速銑頭T52; DR #5
Load 載重:30T,
accuracy 精度：0.02mm/3m.
|
